Bosch 0302

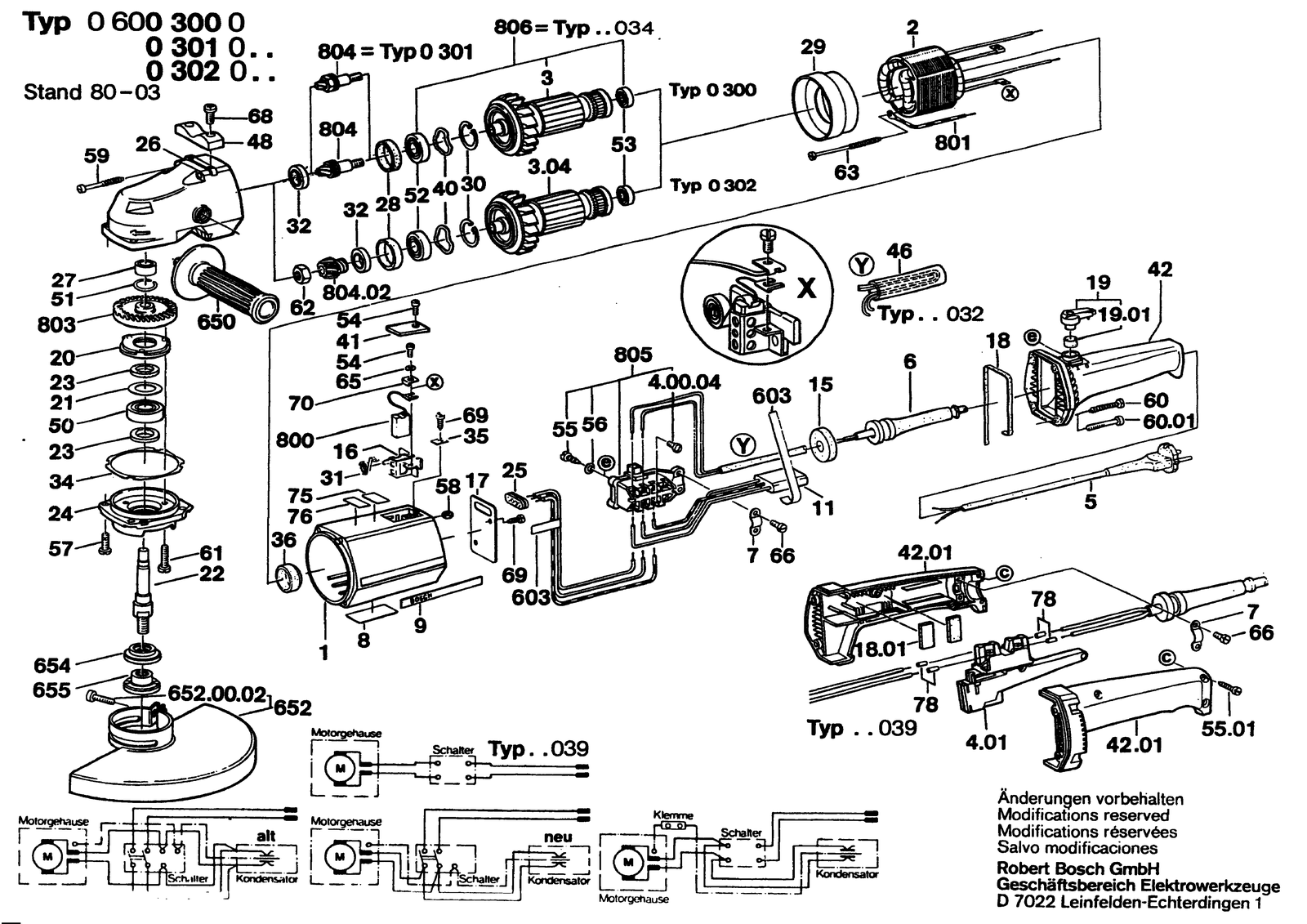

Bosch 0302 angle grinder: exploded parts diagram, 1 sheet, 90 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0302: 90 positions on 1 sheet
Bosch 0302 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108088 | Motor Housing Blue |
| 11 | 1602381006 | Insulating Plate 20X20X50 MM |
| 11 | 1607328034 | Suppression Filter |
| 15 | 1600113002 | Seal |
| 17 | 1601037006 | Cover Plate |
| 17 | 1601329008 | Retaining Bracket |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026041 | Control Lever |
| 2 | 1604220122 | Field 220-230V |
| 2 | 1604220123 | Field 100-110V |
| 2 | 1604220124 | Field 115-120V |
| 2 | 1604220125 | Field 240V |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523090 | Grinding Spindle M14, L=101 MM |
| 22 | 1603523092 | Grinding Spindle 5/8"-UNC-2A |
| 23 | 1600108055 | Sealing disk |
| 24 | 1605805047 | Bearing Flange |
| 24 | 1607000229 | Assembly Of Service Parts |
| 25 | 1600306001 | Grommet |
| 25 | 1901091110 | Strip Terminal |
| 26 | 1605806329 | Gear Housing |
| 26 | 1605806375 | Gear Housing |
| 27 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1600206014 | Rubber Ring Wide 10 MM |
| 28 | 1600206020 | Rubber Ring Wide 7 MM |
| 29 | 1600502009 | Air-Deflector Ring |
| 3 | 1604011236 | Armature 220-230V |
| 3 | 1604011237 | Armature 100-110V |
| 3 | 1604011238 | Armature 115-120V |
| 3 | 1604011239 | Armature 240V |
| 30 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 31 | 1604652006 | Spiral Spring |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600502006 | Rubber Bushing |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 41 | 1605500089 | Sealing cap Blue |
| 42 | 1605132079 | Handle Blue |
| 48 | 1608039008 | Storage Ledge |
| 5 | 1604460024 | Power supply cord |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460080 | Power supply cord |
| 5 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 5 | 3607030489 | Power supply cord |
| 50 | 1900905281 | Groove ball bearing 17X40X12 |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 52 | 1900905234 | Groove ball bearing 15X35X11 |
| 53 | 1600900029 | Groove ball bearing |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 55 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 56 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 59 | 3603415560 | Screw B 4,8X45 MM |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 62 | 1603300014 | Hex Nut |
| 63 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 652 | 1605510083 | Protective Cover Ø190 MM (7") |
| 652 | 1605510176 | Protective Cover Ø180 MM |
| 654 | 1605703053 | Clamping Flange Ø104,5 MM |
| 654 | 2600501006 | Clamping-Flange Ø45 MM |
| 655 | 1603340001 | Round Nut 5/8" |
| 655 | 2603345004 | Round Nut M14 |
| 66 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 66 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 66 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 68 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 7 | 1601302013 | Fastening Clamp |
| 70 | 1611331007 | Tab Washer |
| 75 | 1601110058 | Reference Plate Double Insulation |
| 76 | 3601119236 | Reference Plate |
| 78 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 800 | 1607014106 | Carbon-Brush Set |
| 803 | 1606333174 | Crown Gear Z=56 |
| 805 | 1607000034 | Switch Kit |
| 806 | 1604011928 | Armature 115-120V |
| 9 | 1601110005 | Manufacturer's nameplate |
| 9 | 160111A3H3 | Nameplate |
